Before fitment, please ensure the spacer fits flat to the back of the wheel. Please also test for clearance after fitment at the wheel arch under full right and left wheel lock.
Please note: Extended wheel bolts are not supplied
These wheel spacers are hubcentric. These have a bore size of 57.1mm.

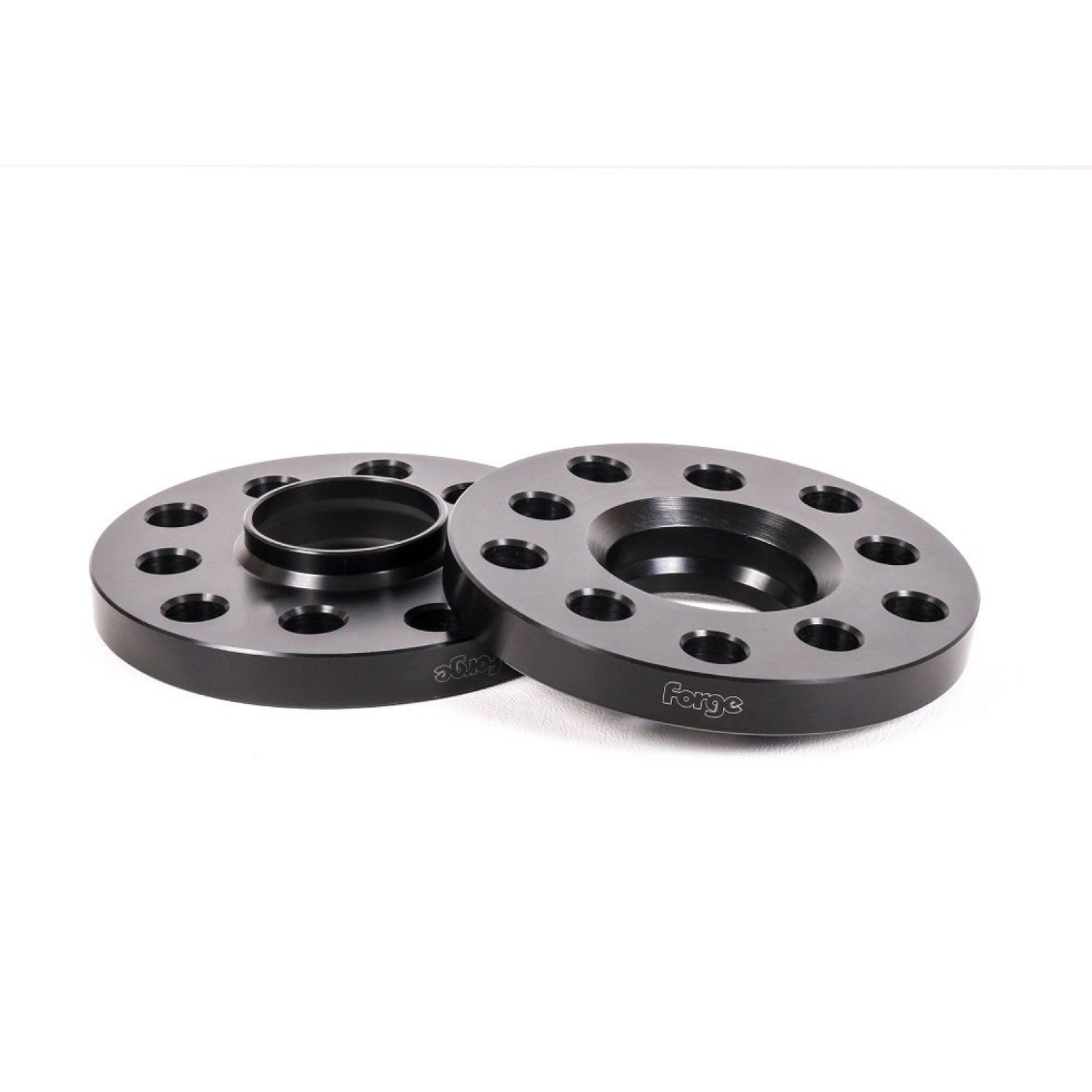

These CNC machined precision alloy wheel spacers are 20 mm thick with a 57.1mm bore and dual 5 stud bolt pattern for both 100 and 112mm PCD fitments. The spacers are anodised black to inhibit corrosion and "bonding" to the wheel or hub and are machined with an alloy spigot to allow centering on the hub. (often called "hubcentric" spacers) The spacers are suitable for most vehicles produced by the Volkswagen, SEAT, Audi, Skoda group. A 20mm spacer will give an overall track increase of 40mm when fitted to both sides of an axle.
These spacers are priced and sold per pair.
Please note: Our 11mm, 16mm, and 20mm hubcentric wheel spacers will NOT work on the rear wheels of the MK3 VW 5x100 applications due to the longer length of the center spigot. There is no problem with the smaller 3mm, 5mm, and 8mm NON-hubcentric spacers..
In The Box:
2 x FMWS20 20mm Wheel Spacer
1 x Forge Sticker
All Forge wheel spacers are manufactured from 6082 alloy
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| AudiA1Audi > A1 > A1 (8X) 2010-2018 > 1.4 Twincharged | 8X | 2010–2018 | — |
| AudiA1Audi > A1 > A1 (8X) 2010-2018 > 1.2 TSI 2010-2014 | 8X | 2010–2014 | 1.2 TSI |
| AudiA1Audi > A1 > A1 (8X) 2010-2018 > 1.4 Turbo | 8X | 2010–2018 | 1.4 Turbo |
| AudiA1Audi > A1 > A1 (8X) 2010-2018 > 1.6 TDI 2011 Onwards | 8X | 2011–2018 | 1.6 TDI s |
| AudiA1Audi > A1 > A1 (8X) 2010-2018 > 2.0 TDI 2011 Onwards | 8X | 2011–2018 | 2.0 TDI s |
| AudiA3Audi > A3 > (8P) 2004-2013 > 3.2 | 8P | 2004–2013 | — |
| AudiA3Audi > A3 > (8P) 2004-2013 > 1.2 TSI | 8P | 2004–2013 | 1.2 TSI |
| AudiA3Audi > A3 > (8P) 2004-2013 > 1.4 Turbo | 8P | 2004–2013 | 1.4 Turbo |
| AudiA3Audi > A3 > (8P) 2004-2013 > 1.8 TFSi | 8P | 2004–2013 | 1.8 TFSi |
| AudiA3Audi > A3 > (8P) 2004-2013 > 2.0 TDI (2004-2009) | 8P | 2004–2009 | 2.0 TDI |
| AudiA3Audi > A3 > (8P) 2004-2013 > 2.0 TFSI | 8P | 2004–2013 | 2.0 TFSI |
| AudiA3Audi > A3 > (8L) 1996-2004 > 1.8T | A3 | 1996–2004 | 1.8T |
| AudiA3Audi > A3 > (8L) 1996-2004 > 1.9 TDI | A3 | 1996–2004 | 1.9 TDI |
| AudiA4Audi > A4 > (B5) 1994-2001 > 1.8T (Turbo) | A4 | 1994–2001 | 1.8T (Turbo) |
| AudiA4Audi > A4 > (B5) 1994-2001 > 1.9 TDI | A4 | 1994–2006 | 1.9 TDI |
| AudiA4Audi > A4 > (B7) 2004-2008 > 2.0 TDI | A4 | 2004–2008 | 2.0 TDI |
| AudiA4Audi > A4 > (B7) 2004-2008 > 2.0 TFSI | A4 | 2004–2008 | 2.0 TFSI |
| AudiRS3Audi > RS3 > 8P 2011-2012 | 8P | 2011–2012 | — |
| AudiRS3Audi > RS3 > 8V 2015-2017 | 8V | 2015–2020 | — |
| AudiRS3Audi > RS3 > 8Y 2021-2024 | 8Y | 2021–2024 | — |
| AudiRS3Audi > RS3 > 8Y.5 2024 On | 8Y | 2024 | 8Y.5 2024 On |
| AudiRS4Audi > RS4 > B5 (1999-2001) | RS4 | 1999–2001 | — |
| AudiRSQ3Audi > RSQ3 > 2017- (F3) | RSQ3 | 2017 | — |
| AudiS3Audi > S3 > 8P (2006-2012) | 8P | 2006–2012 | — |
| AudiS3Audi > S3 > 8V (2013-2020) | 8V | 2013–2020 | — |
| AudiS3Audi > S3 > 8Y (2020 - Onwards) | 8Y | 2020–2026 | 8Y Onwards) |
| AudiS3Audi > S3 > 8Y Sportback (2020 - Onwards) | 8Y | 2020–2026 | 8Y Sportback Onwards) |
| AudiS3Audi > S3 > 8L (1999-2003) | S3 | 1999–2003 | — |
| AudiS4Audi > S4 > B5 (1997-2002) | S4 | 1997–2002 | — |
| AudiTTAudi > TT > Mk1 (1998-2006) > 1.8T 150/180BHP | MK1 | 1998–2006 | 1.8T 150/180BHP |
| AudiTTAudi > TT > Mk1 (1998-2006) > 1.8T 210/225BHP | MK1 | 1998–2006 | 1.8T 210/225BHP |
| AudiTTAudi > TT > Mk2 (2006-2014) > TTS 8J (2009-2014) | MK2 | 2009–2014 | — |
| AudiTTAudi > TT > Mk2 (2006-2014) > 2.0 TDI | MK2 | 2006–2014 | 2.0 TDI |
| AudiTTAudi > TT > Mk2 (2006-2014) > 2.0 TSI (2006-2010) | MK2 | 2006–2014 | 2.0 TSI |
| AudiTTAudi > TT > Mk3 (2015 - Onwards) > TTS 8S (2014-2021) | MK3 | 2015–2026 | — |
| AudiTTAudi > TT > Mk3 (2015 - Onwards) > 2.0 TSI 2015 Onwards (8S) | MK3 | 2015–2026 | 2.0 TSI s (8S) |
| AudiTTAudi > TT > Mk3 (2015 - Onwards) > 40 TFSI (2021 - Onwards) (8S) | MK3 | 2021–2026 | 40 TFSI Onwards) (8S) |
| AudiTTAudi > TT > Mk3 (2015 - Onwards) > 45 TFSI (2019-2021) (8S) | MK3 | 2019–2021 | 45 TFSI (8S) |
| AudiTTAudi > TT > Mk3 (2015 - Onwards) > 45 TFSI (2021 - Onwards) (8S) | MK3 | 2021–2026 | 45 TFSI Onwards) (8S) |
| CupraAtecaCupra > Ateca > 2.0 TSI > 2018-2023 | — | 2018–2026 | 2.0 TSI |
| SeatLeonSeat > Leon > Mk1 1998-2005 > Cupra 1.8T | MK1 | 1998–2005 | Cupra 1.8T |
| SeatLeonSeat > Leon > Mk1 1998-2005 > Cupra R 1.8T | MK1 | 1998–2005 | Cupra R 1.8T |
| SeatLeonSeat > Leon > Mk2 2005-2012 > Diesel | MK2 | 2005–2012 | — |
| SeatLeonSeat > Leon > Mk2 2005-2012 > 1.2 TSI 2009-2012 | MK2 | 2009–2012 | 1.2 TSI |
| SeatLeonSeat > Leon > Mk2 2005-2012 > 1.4 Turbo 2007-2012 | MK2 | 2007–2012 | 1.4 Turbo |
| SeatLeonSeat > Leon > Mk2 2005-2012 > Cupra 2.0 TFSi | MK2 | 2005–2012 | Cupra 2.0 TFSi |
| SeatLeonSeat > Leon > Mk3 2012-2020 > 1.0 TSI 2015-2020 | MK3 | 2015–2020 | 1.0 TSI |
| SeatLeonSeat > Leon > Mk3 2012-2020 > 1.8 TSI | MK3 | 2012–2020 | 1.8 TSI |
| SeatLeonSeat > Leon > Mk4 2022- > 1.5 TSI | MK4 | 2022–2026 | 1.5 TSI |
| SkodaFabiaSkoda > Fabia > 5J 2007-2014 > 1.2 TSI | — | 2007–2014 | 1.2 TSI |
| SkodaFabiaSkoda > Fabia > 5J 2007-2014 > 1.4 TSI | — | 2007–2014 | 1.4 TSI |
| SkodaOctaviaSkoda > Octavia > Mk1 1U 1996-2004 > 1.9 TDI | MK1 | 1996–2004 | 1.9 TDI |
| SkodaOctaviaSkoda > Octavia > Mk1 1U 1996-2004 > VRS 1.8T | MK1 | 1996–2004 | VRS 1.8T |
| SkodaOctaviaSkoda > Octavia > Mk2 1Z 2004-2012 > VRS 2.0 FSiT | MK2 | 2004–2012 | — |
| SkodaOctaviaSkoda > Octavia > Mk2 1Z 2004-2012 > 1.2 TSI (2010 - Onwards) | MK2 | 2010–2012 | 1.2 TSI Onwards) |
| SkodaOctaviaSkoda > Octavia > Mk2 1Z 2004-2012 > 2.0 TDI | MK2 | 2004–2012 | 2.0 TDI |
| SkodaSuperbSkoda > Superb > B5 2001-2008 > 1.8T | B5 | 2001–2008 | 1.8T |
| SkodaSuperbSkoda > Superb > B5 2001-2008 > 1.9TDI | B5 | 2001–2008 | 1.9TDI |
| SkodaSuperbSkoda > Superb > B6 2008-2015 > 2.0 TSFI | B6 | 2008–2015 | — |
| SkodaSuperbSkoda > Superb > B6 2008-2015 > 1.4 TSI | B6 | 2008–2015 | 1.4 TSI |
| SkodaSuperbSkoda > Superb > B8 2015-2024 > 2.0TSI 280 BHP | B8 | 2015–2024 | 2.0TSI 280 BHP |
| VolkswagenArteonVolkswagen > Arteon > (2020 - Onwards) > 1.5 TSI | — | 2020–2026 | 1.5 TSI |
| VolkswagenArteonVolkswagen > Arteon > (2017-2020) > 2.0 TSI | — | 2017–2020 | 2.0 TSI |
| VolkswagenArteonVolkswagen > Arteon > (2020 - Onwards) > R | — | 2020–2026 | R |
| VolkswagenBeetleVolkswagen > Beetle > 2013 2.0 | — | 2013 | 2013 2.0 |
| VolkswagenBeetleVolkswagen > Beetle > 2013 2.0 Diesel | — | 2013 | 2013 2.0 Diesel |
| VolkswagenJettaVolkswagen > Jetta > MK6 (2010-2018) > 1.4 TSI | MK6 | 2010–2018 | 1.4 TSI |
| VolkswagenJettaVolkswagen > Jetta > MK6 (2010-2018) > 1.6/2.0 Diesel | MK6 | 2010–2018 | 1.6/2.0 Diesel |
| VolkswagenJettaVolkswagen > Jetta > MK7 (2018-2021) > 2.0 GLI | MK7 | 2018–2021 | — |
| VolkswagenJettaVolkswagen > Jetta > MK7 (2018-2021) > 1.4 TSI | MK7 | 2018–2021 | 1.4 TSI |
| VolkswagenJettaVolkswagen > Jetta > MK7.5 (2021 - Onwards) > 2.0 GLI | MK7.5 | 2021–2026 | — |
| VolkswagenJettaVolkswagen > Jetta > MK7.5 (2021 - Onwards) > 1.5 TSI | MK7.5 | 2021–2026 | 1.5 TSI |
| VolkswagenPassatVolkswagen > Passat > B5 (1996-2005) > 1.8T | B5 | 1996–2005 | 1.8T |
| VolkswagenPassatVolkswagen > Passat > B5 (1996-2005) > 1.9 TDI | B5 | 1996–2005 | 1.9 TDI |
| VolkswagenPassatVolkswagen > Passat > B6 (2005-2011) > 1.9 TDI | B6 | 2005–2011 | 1.9 TDI |
| VolkswagenPassatVolkswagen > Passat > B6 (2005-2011) > 2.0 TDI | B6 | 2005–2011 | 2.0 TDI |
| VolkswagenPassatVolkswagen > Passat > B6 (2005-2011) > 2.0 TFSI | B6 | 2005–2011 | 2.0 TFSI |
| VolkswagenPassatVolkswagen > Passat > B8 (2015-2021) > 2.0 TSI | B8 | 2015–2021 | 2.0 TSI |
| VolkswagenPoloVolkswagen > Polo > Mk4 9n (2002-2009) > GTI 1.8T | MK4 | 2002–2009 | GTI 1.8T |
| VolkswagenPoloVolkswagen > Polo > Mk5 > 6R (2009-2014) | MK5 | 2009–2018 | — |
| VolkswagenSciroccoVolkswagen > Scirocco > 2.0 up to 2016 | — | 2016 | 2.0 up to 2016 |
| VolkswagenT-RocVolkswagen > T-Roc > R (2019-2022) | — | 2019–2022 | R |
| VolkswagenTaosVolkswagen > Taos > 1.5 TSI 2022-2024 | — | 2022–2024, 2026 | 1.5 TSI |
| VolkswagenTiguanVolkswagen > Tiguan > Mk1 (5N) 2007-2018 > 2.0 TFSI | MK1 | 2007–2018 | 2.0 TFSI |
| VolkswagenTiguanVolkswagen > Tiguan > Mk2 (AD/BW) 2016- > R 2021 Onwards (Gen 4) | MK2 | 2021–2026 | R s (Gen 4) |
